RV Industries is a leading manufacturer of pipe fittings in India, recognized for our commitment to quality and excellence. We offer a comprehensive range of Fittings, including Elbows, Crosses, End Caps, Tees, Bends, and Outlets. Our fittings are crafted from top-quality raw materials and undergo rigorous testing to ensure premium performance and durability.
Pipe Fittings
Description: Pipe Fittings are designed to be welded onto pipes to form a strong, seamless connection. They are ideal for high-pressure and high-temperature applications due to their ability to withstand harsh conditions and provide a leak-proof joint.
Types:
- Elbows: Used to change the direction of the pipe.
- Tees: Provide a branch from the main pipe.
- Reducers: Adjust the diameter of the pipe.
- Caps: Close the end of the pipe.
Grades:
- Carbon Steel: ASTM A234 WPB, ASTM A234 WP1, ASTM A234 WP11.
- Alloy Steel: ASTM A335 P5, ASTM A335 P9.
- Stainless Steel: ASTM A403 WP304, ASTM A403 WP316.
Socket Weld Fittings
Description: Socket weld fittings are used in small-diameter pipes and are designed to be welded inside the fitting. They are preferred for their strength and durability in high-pressure applications.
Types:
- Elbows: Change the direction of the pipe.
- Tees: Create a branch off the main line.
- Reducers: Connect pipes of different diameters.
- Flanges: Allow for the connection of different sections of piping.
Grades:
- Carbon Steel: ASTM A105, ASTM A350 LF2.
- Stainless Steel: ASTM A182 F304, ASTM A182 F316.
Dairy Fittings
Description: Dairy fittings are specialized for sanitary applications, especially in the dairy industry. They are designed to ensure clean, hygienic connections and are often used in systems requiring frequent cleaning.
Types:
- Clamp Fittings: Easily removable, ideal for frequent disassembly.
- Butterfly Valves: Used for controlling the flow of liquids.
- Tri-Clamp Fittings: Allow for secure and sanitary connections.
- Sanitary Elbows and Tees: Ensure smooth flow and minimize contamination.
Grades:
- 304 Stainless Steel: Offers excellent corrosion resistance and is commonly used in dairy applications.
- 316 Stainless Steel: Provides superior resistance to corrosion and is used in more demanding environments.
These fittings serve various industries and applications, each requiring specific grades and standards to meet operational demands and ensure reliability. If you have any specific requirements or need further details, feel free to ask!

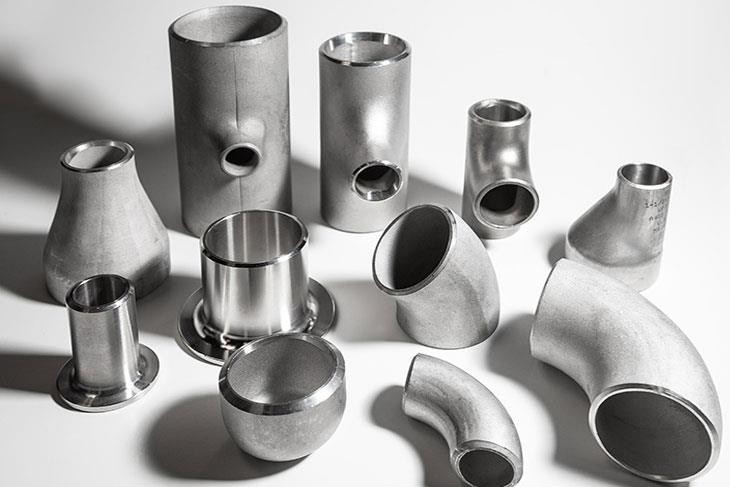

Available Types of Pipe Fitting
Different types of available Pipe Fitting define below.
Chemical Composition of Pipe Fitting
Chemical Composition of Pipe Fitting with its Grades define in the table below.
| Chemical Composition | |
|---|---|
| Carbon (C) | 0.30 max |
| Manganese (Mn) | 0.29-1.06 |
| Phosphorus (P) | 0.05 max |
| Sulfur (S) | 0.058 max |
| Silicon (Si) | 0.10 min |
| Chromium (Cr) | 0.40 max |
| Molybdenum (Mo) | 0.15 max |
| Nickel (Ni) | 0.40 max |
| Copper (Cu) | 0.40 max |
Mechanical Property of Pipe Fitting
Mechanical Property of Pipe Fitting with its Density, Tensile Strength and Elongation define in the table below.
| Mechanical Property | ||
|---|---|---|
| Properties | Metric | Imperial |
| Elongation at break (in 50 mm) | 55% | 55% |
| Tensile strength | 595 MPa | 86300 psi |
| Hardness, Rockwell B | 85 | 85 |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Yield strength | 260 MPa | 37700 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
